Description

• iFlight's upgraded Chimera 7 Frame Kit, now compatible with the DJI O4 Pro Air Unit, delivers exceptional stability and longer flight times ideal for cinematic shooting. Built from super-stiff carbon to minimize resonance, it pairs best with 2809 motors for optimal 7.5" prop performance. Expect smooth and versatile flights, whether skimming over water or soaring through the Swiss Alps.

Features

• O3 to O4  was upgraded for the DJI O4 Pro Air Unit:

• New Camera Mount for DJI O4 Pro Air Unit

• New Silicone side panels

• New DJI O4 Pro MIPI Video Cable

Specificaitons

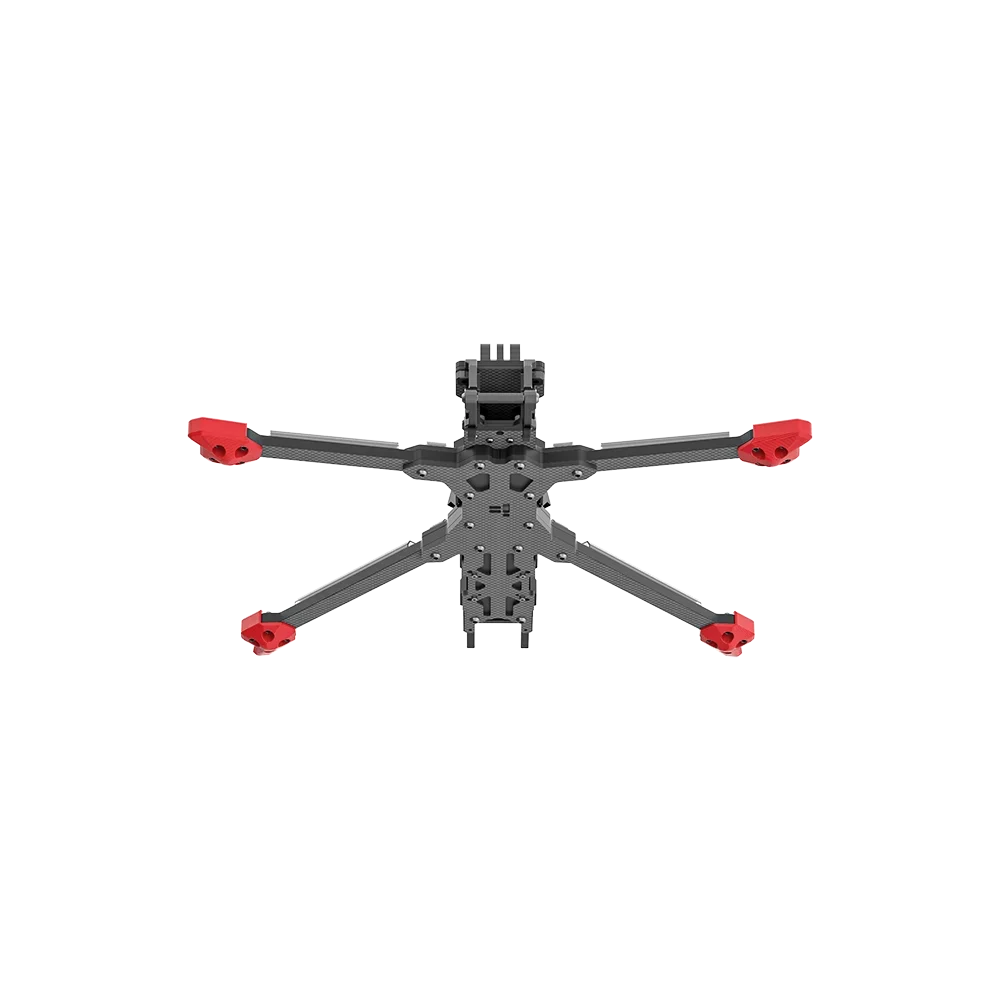

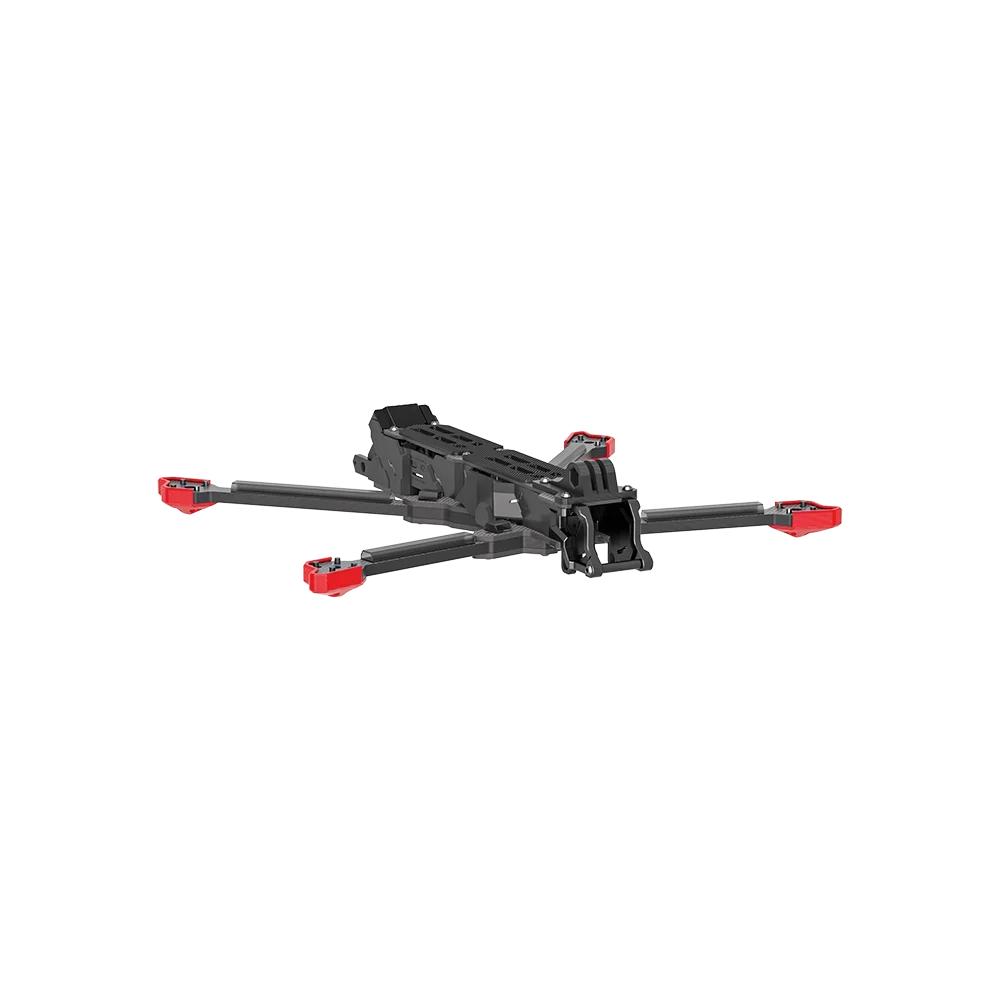

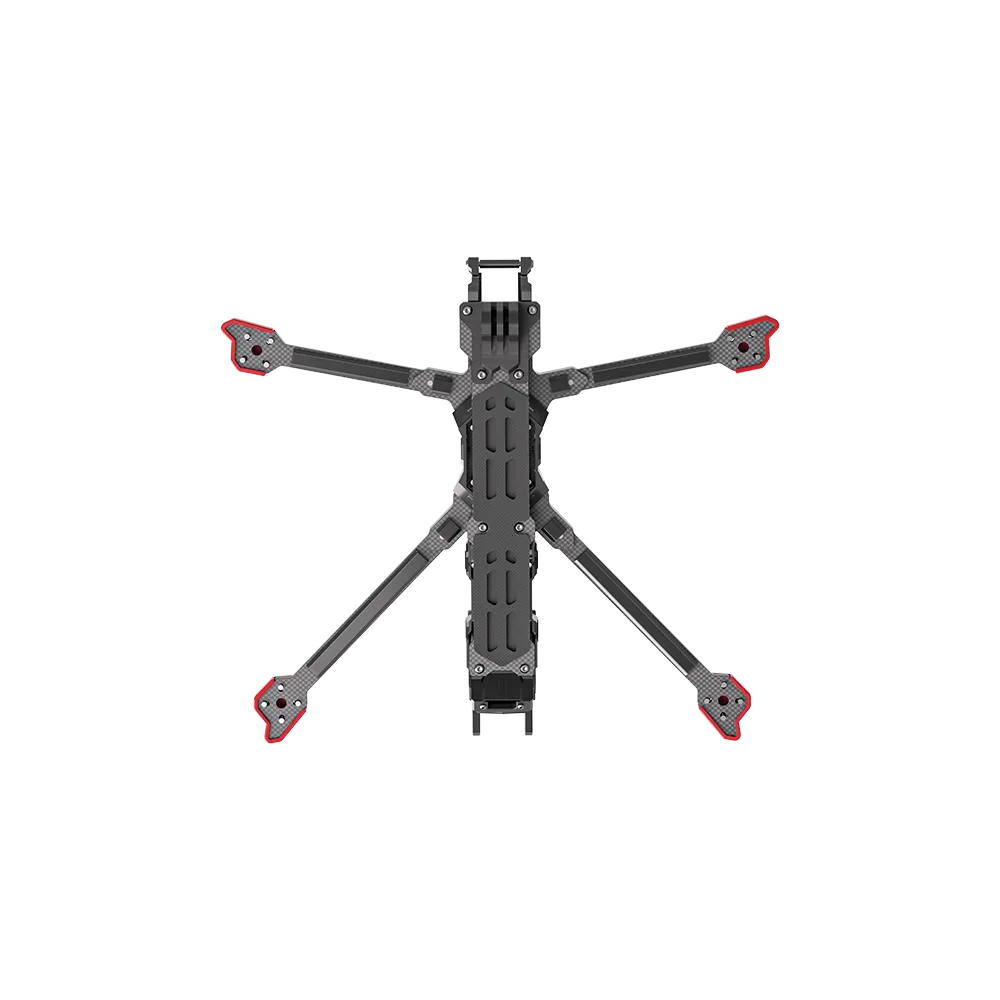

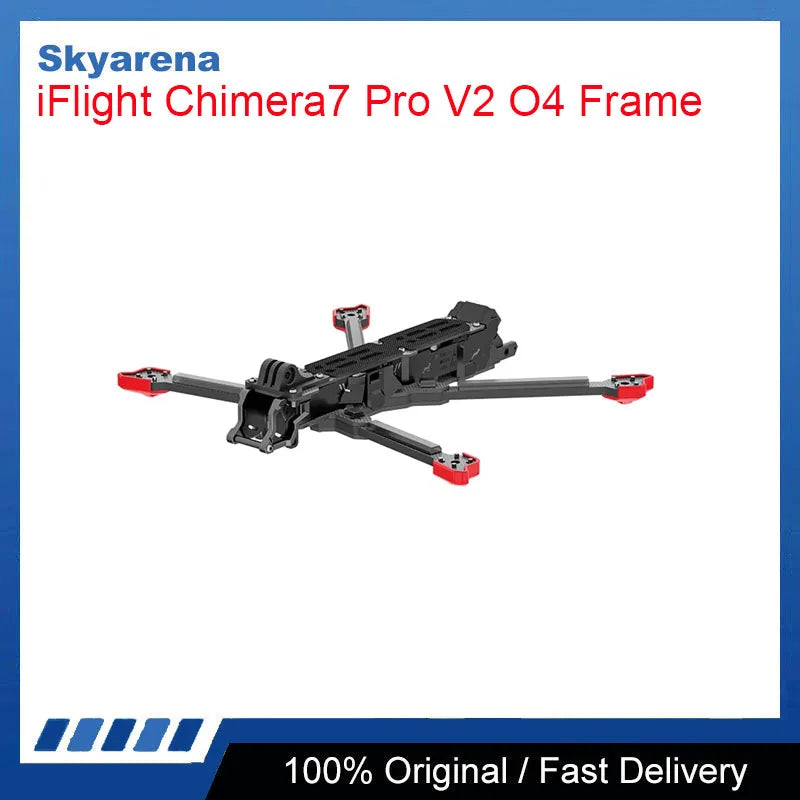

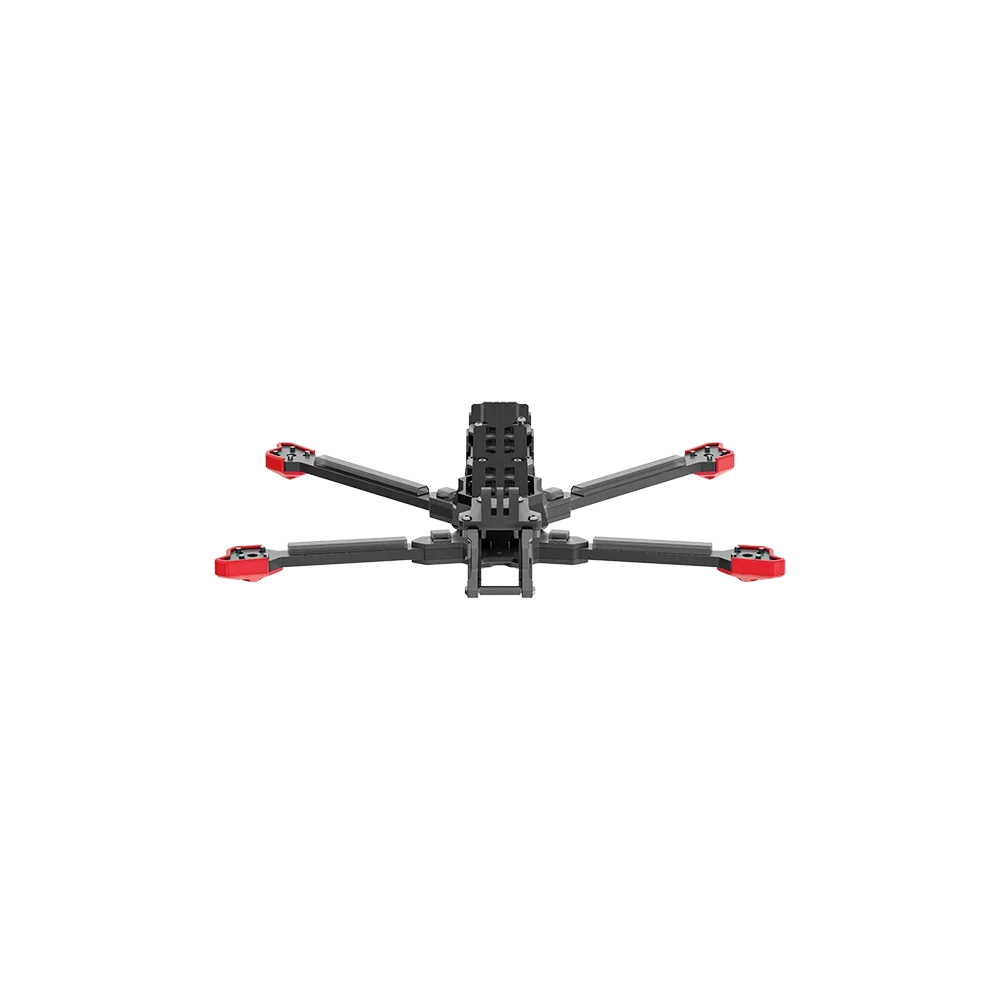

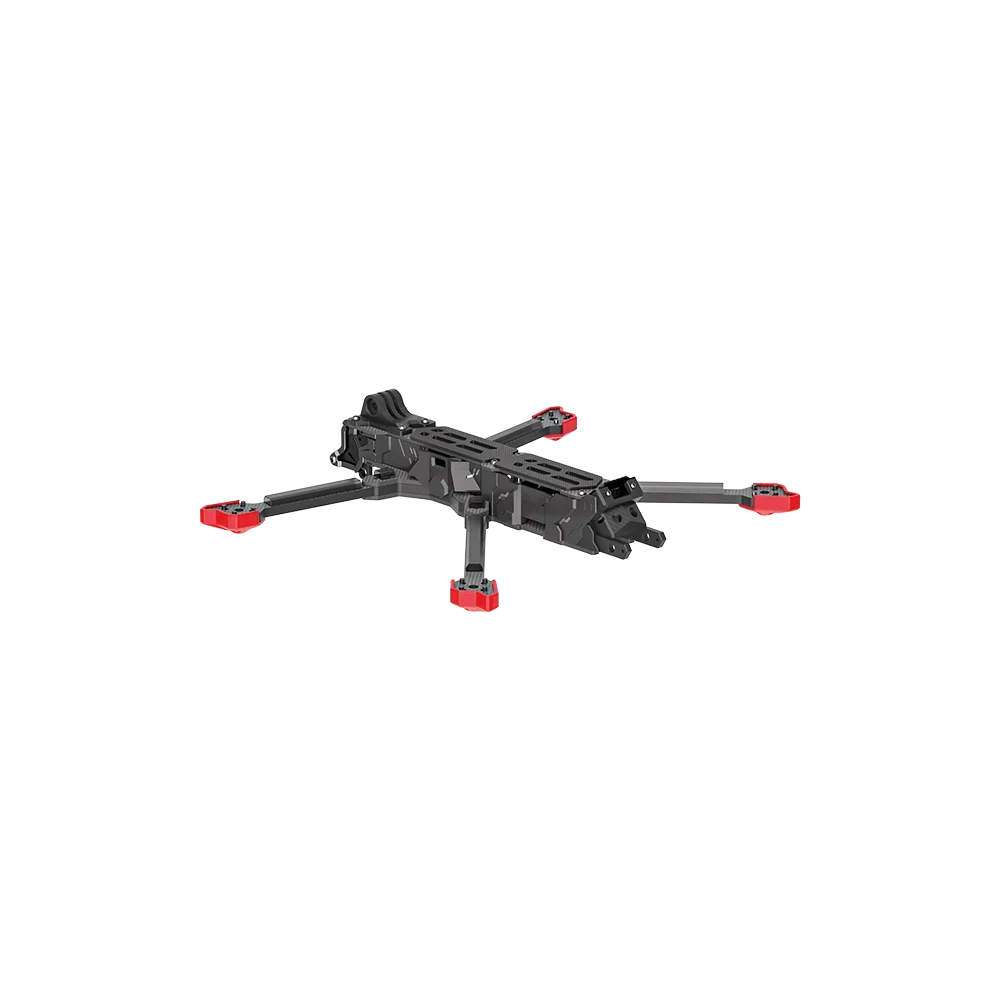

• Product Name:Chimera7 Pro V2 O4 Frame Kit

• Wheelbase: 327mm

• Frame Dimension: L270*W199*H34 mm

• Arm Thickness: 6mm

• Bottom Plate Thickness: 3mm

• Top Plate Thickness: 2mm

• Upper Plate Thickness: 3mm

• Camera Plate Thickness: 3mm

• Max Flight Stack Height: 21mm

• Max VTX Height: 30mm

• Flight Stack Mounting: 30*30/Φ3mm

• Motor Mounting: 16x16mm / 19*19mm Φ3mm

• VTX Mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm

• Weight: 355g±5g

• Compatibility: DJI O4 Pro Air Unit/DJI O4 Air Unit/Vista HD/BLITZ Whoop 1.6W VTX

Tolerance Note

• Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.

Packing List

• 1 x Chimera7 Pro V2 O4 Frame Kit

• 1x 220mm O4 MIPI Digital Video Cable

• 2x O4 IPEX to RP-SMA Antenna Pigtails

• 1 x Dual Antenna TPU

• 1 x GoPro TPU Base Mount

• 1 x Screw Bag

• 4 x TPU Arm guard

• 2 x Anti-Slip Battery Pad

• 2 x Battery Strap
